Coleman Mach8 13.5K Ducted Low Prof AC Condensor Pump-Heat – Roof,Ceiling,Thermostat

by Coleman
Sold out
SKU 47023A879-8630A635-9630-3351
Coleman Mach8 13.5K Ducted Low Prof AC Condensor Pump/Heat – Roof,Ceiling,Thermostat

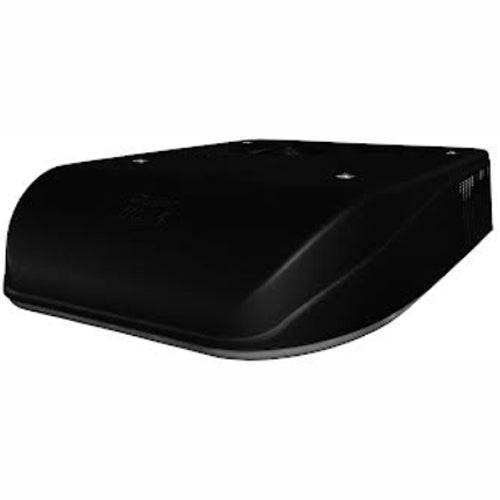

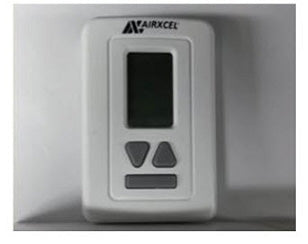

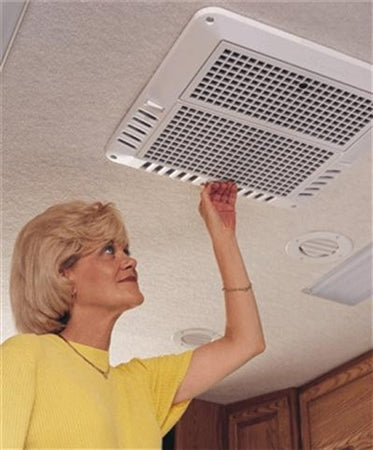

47024A879 Coleman Mach 8 13.5K Black Low Profile Air Conditioner/Condensor Pump with 8630A635 Ducted Ceiling Assembly and 9630-3351 Digital Thermostat

The Mach 8 has the lowest profile in the industry measuring in at 8 inches tall. Of course with the lower profile that means less drag and improved fuel efficiency. With two motors the Mach 8 delivers the same high BTUs of cool on both high and low speed operation. This unit has an industry exclusive molded one piece fiberglass base pan which provides excellent durability while reducing the weight.
  • Weighing in at 90 lbs, the MACH 8 is the LIGHTEST low profile unit made
  • Backward compatible with any Coleman Mach air conditioner, and installs easily from the roof for ducted top down mounted systems
  • Operates even at desert conditions of 125? F
  • Has the LARGEST BTU resistance heater of any RV air conditioner
  • Another Quality Coleman Mach air conditioner - 5,000,000 units and counting

Installation Notes:

1. If the heat pump is equipped with an optional evaporator condensate pump, a 1/2" I.D. hose must be provided that runs from the 14" square opening, through the vehicle ceiling and down the side wall to allow water to drain under the vehicle. The hose must not be allowed to kink shut while making a bend. Connect the top end of the drain hose to the barbed fitting.

2. Insure that a condensate hose is installed if the optional condensate pump is provided. The attachment point is in the return air. A 1/2" barbed fitting is provided, however, removal of the hose “pigtail" will allow use of a 1/4" I.D. hose.
