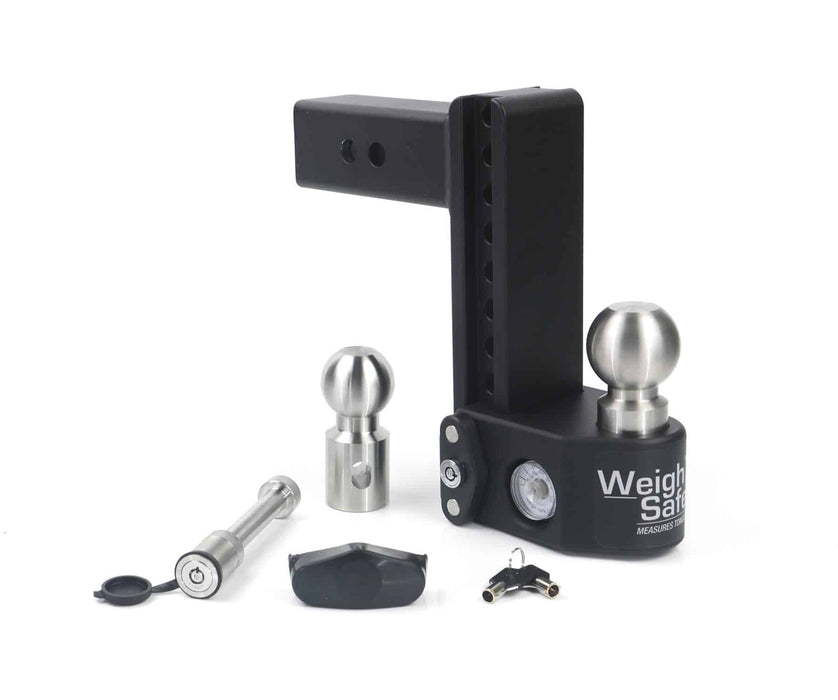

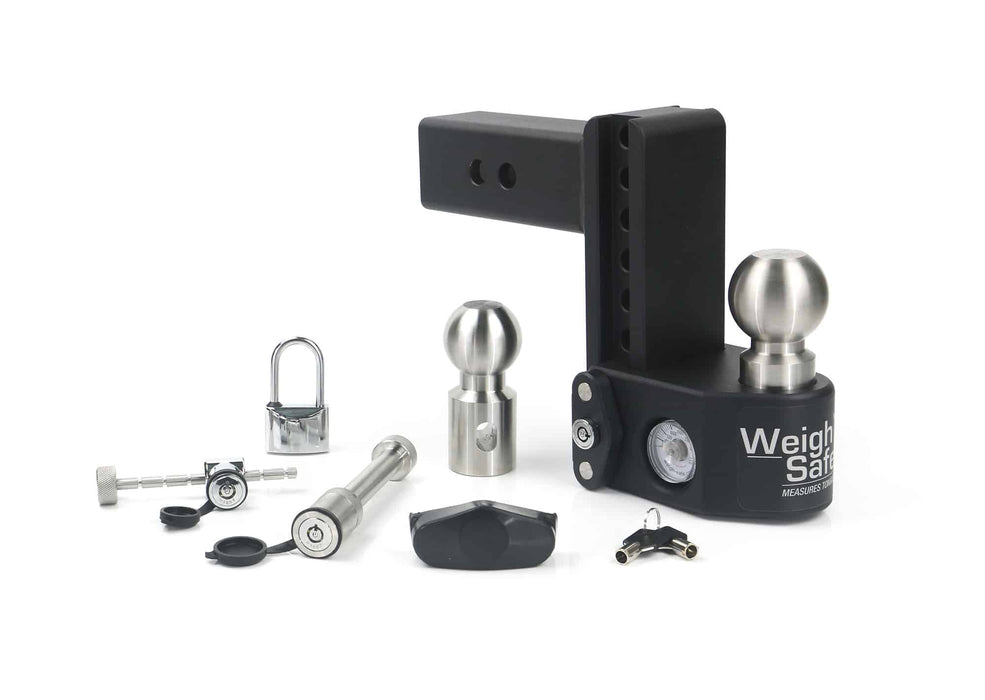

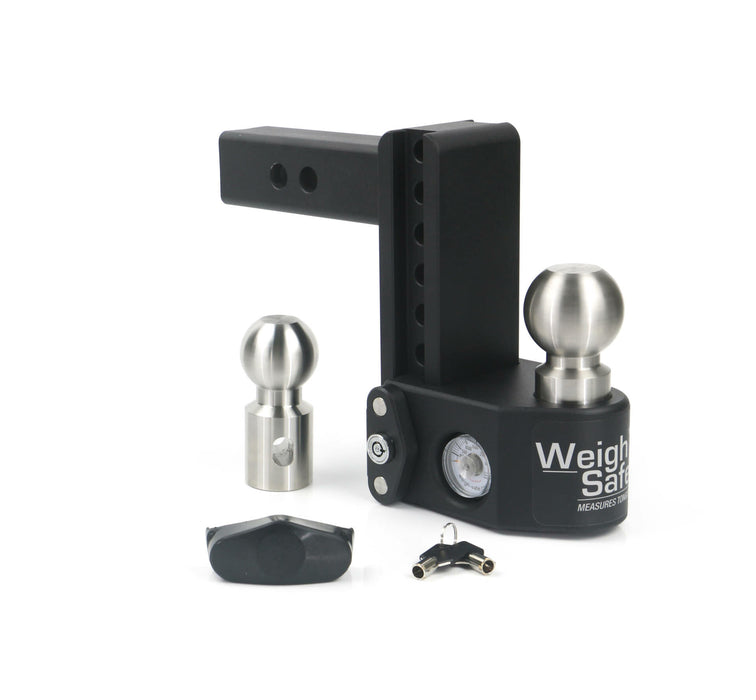

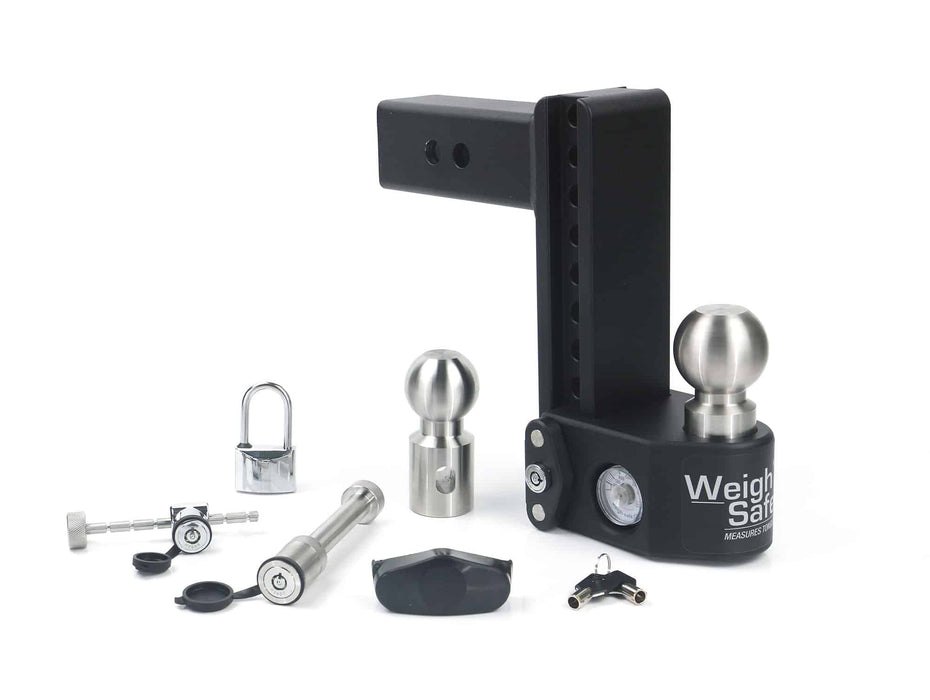

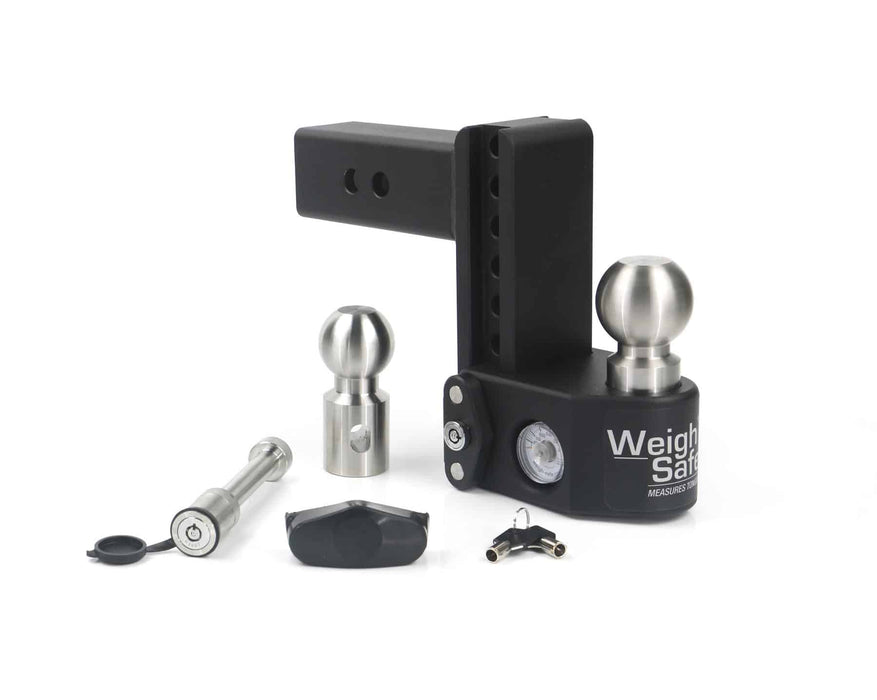

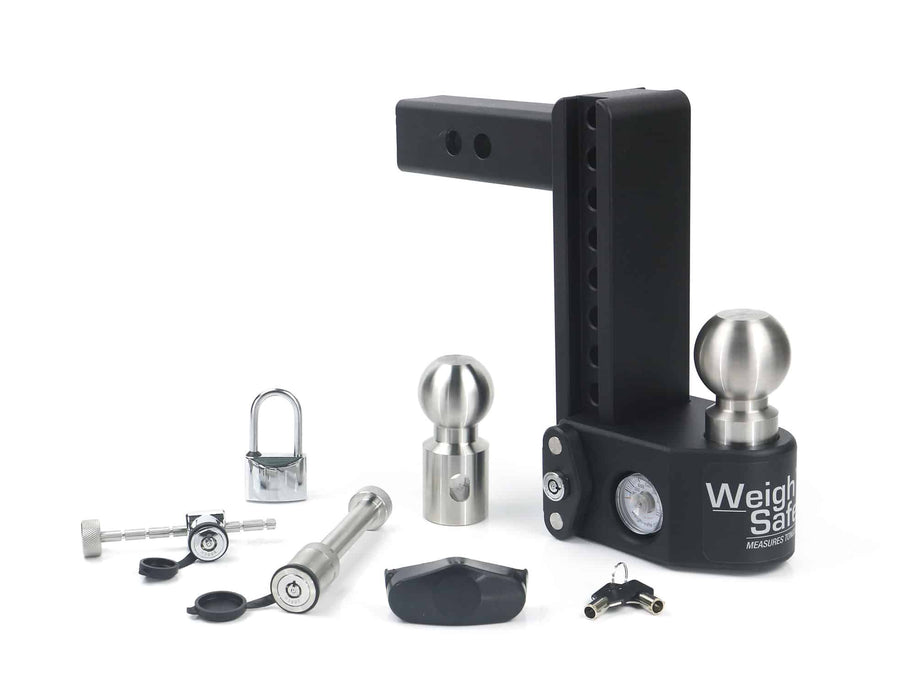

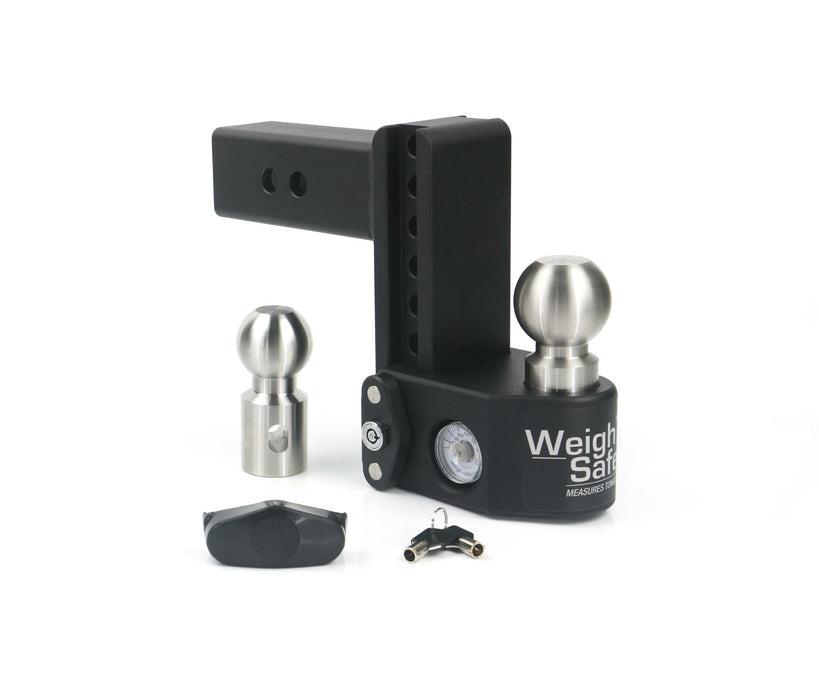

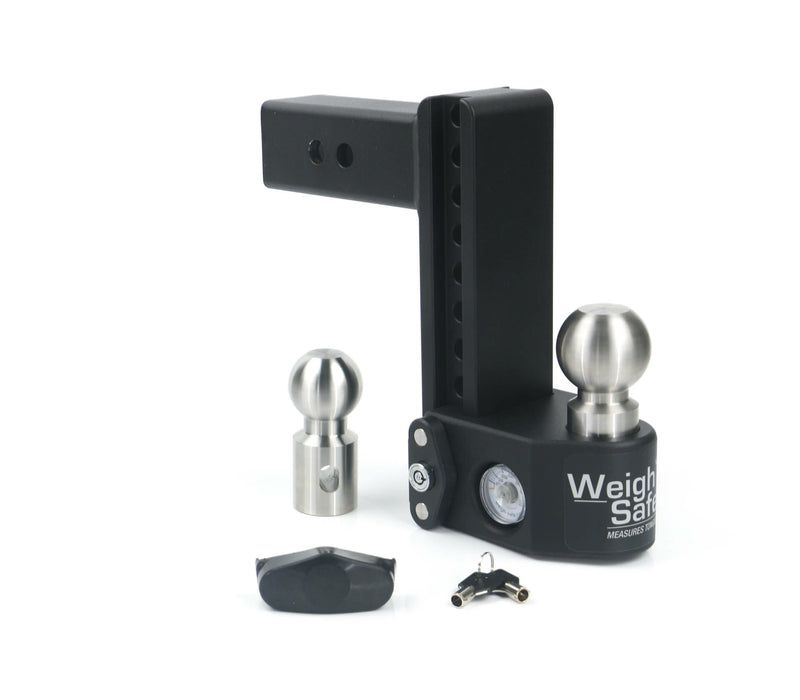

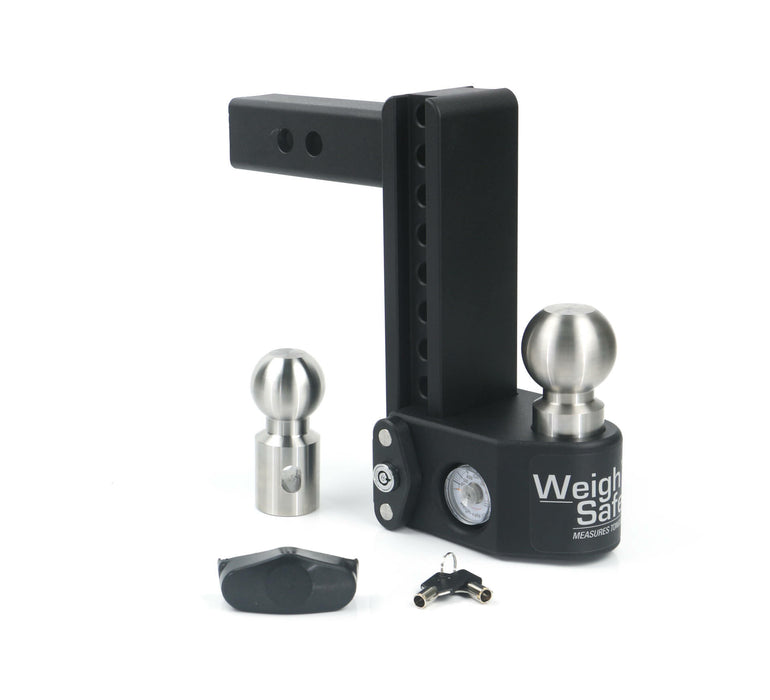

WEIGH SAFE STEEL DROP HITCH

$359.00
SKU SWS8-2-KA
Drop Length
Shaft Size
Key Alike Locks

The Weigh Safe Drop Hitch is the one and only trailer hitch with a built-in scale that signals you to adjust your load before you hit the road, resulting in a much safer and enjoyable towing experience. Before this ball mount, gauging your trailer’s tongue weight was a hassle. You had to rely on inefficient bathroom scales, make a trip to the weigh station, or purchase a separate tongue weight scale. But with the Weigh Safe’s built-in scale, measuring your tongue weight is as easy as coupling your trailer to your ball mount. Simply hook-up your trailer to the Weigh Safe ball mount just as you would any other ball mount. The weight of your trailer will push down on the hitch ball, which in turn pushes down on an internal hydraulic piston that sits on a bed of oil. When the piston drops into the oil, the pressure reading is sent out to the scale.Tow Ball 2" & 2-5/16"

FEATURES

  • Tongue weight scale built into the ball mount platform helps you balance your trailer
    • Promotes safe towing - lets you know if your load needs to be adjusted before you tow
    • Simple operation - automatically provides a measurement every time you couple your trailer
    • Efficient and hassle-free - eliminates the need for separate or commercial scales
Features 6" Drop Hitch 8" Drop Hitch
Built-in Scale
Shaft 2" or 2.5″
Ball 2" & 2-5/16" Stainless Steel Balls Included
1-7/8 add-on option”
Max GTW 7500 lbs – 1-7/8" ball
8000 lbs – 2" ball
15,000 lbs – 2-5/16" ball (2" shaft)
22,000 lbs – 2-5/16" ball (2.5" shaft)
Max Tongue 1,500 lbs (2" Shaft), 2,200 lbs (2.5" Shafts)
V5 & J684 certified
Drop Hitch Adjustment 1" increments
Weight 31 lbs – 2" shank
35 lbs – 2.5" shank
34 lbs – 2" shank
38 lbs – 2.5" shank
Ball material Stainless steel

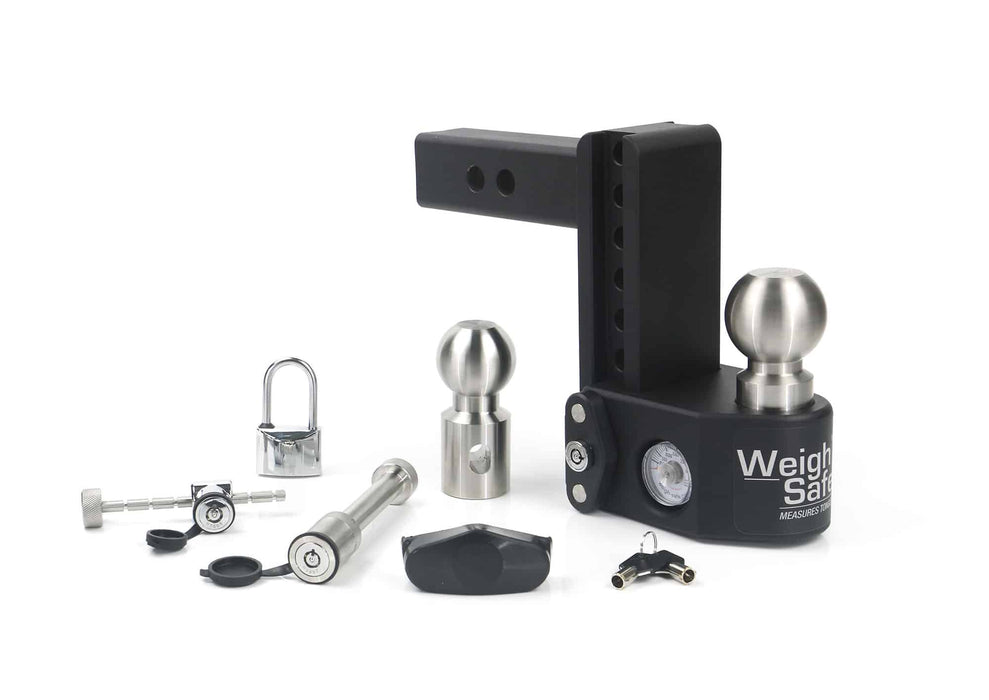

Pin Dual pin key lock assembly included
Rise All hitches may be used in rise position *Gain 1 inch (e.g. 6" drops are 7" rises)
Total Height Add 3 inches (*e.g. 6" drops measure 9" from the top of the receiver to the hitch base)
Hitch Pin Hole 5/8" Diameter
Compatible with Clam Shell
Stowable
Saves Property
Saves Time
Maintenance Stainless steel tow balls can still show surface rust, particularly after use in a coupler and exposure to water/salt. This rust will not spread past the surface of the towball and it will not affect the performance of the towball. The rust can be cleaned up and removed with a scotch brite/brillo pad.
